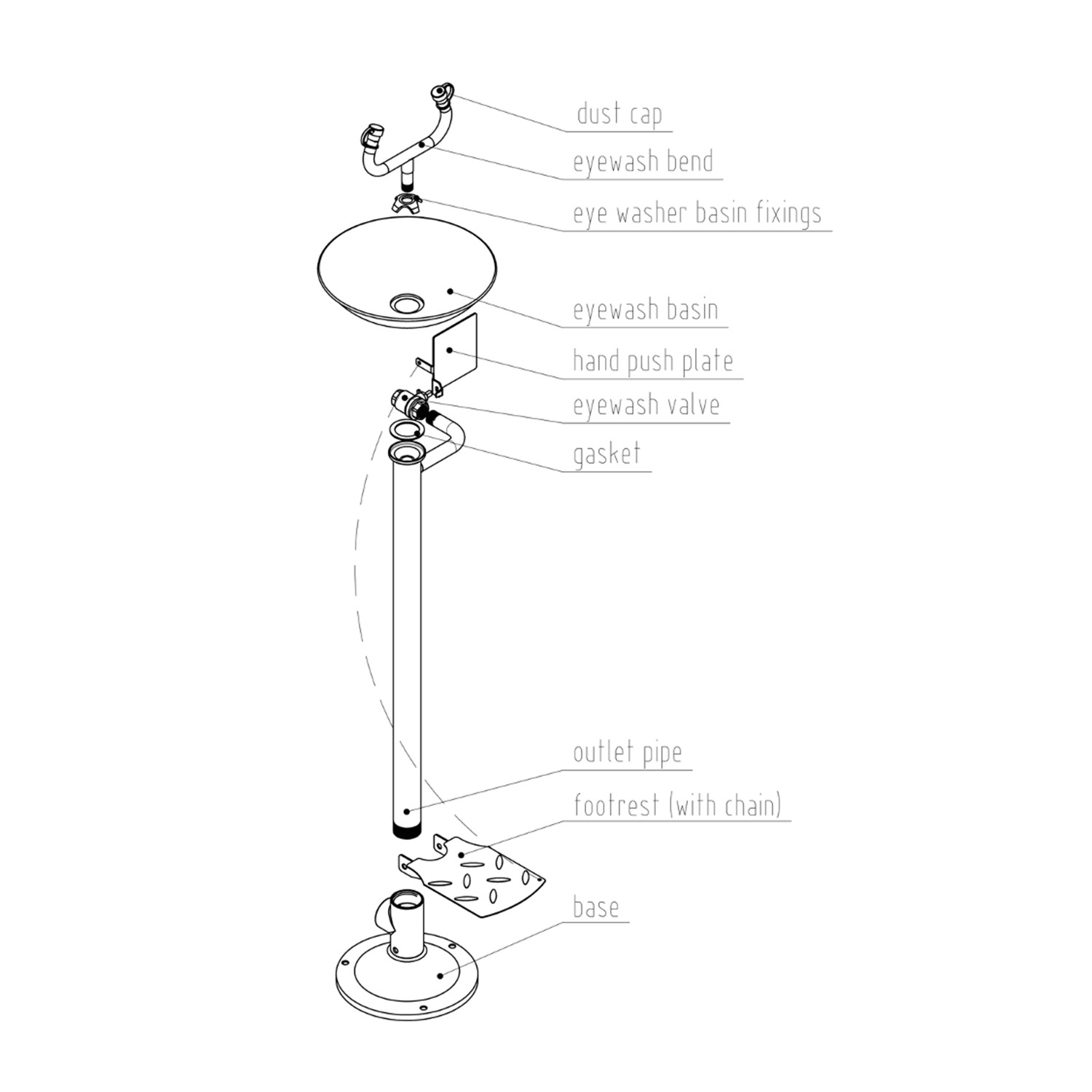

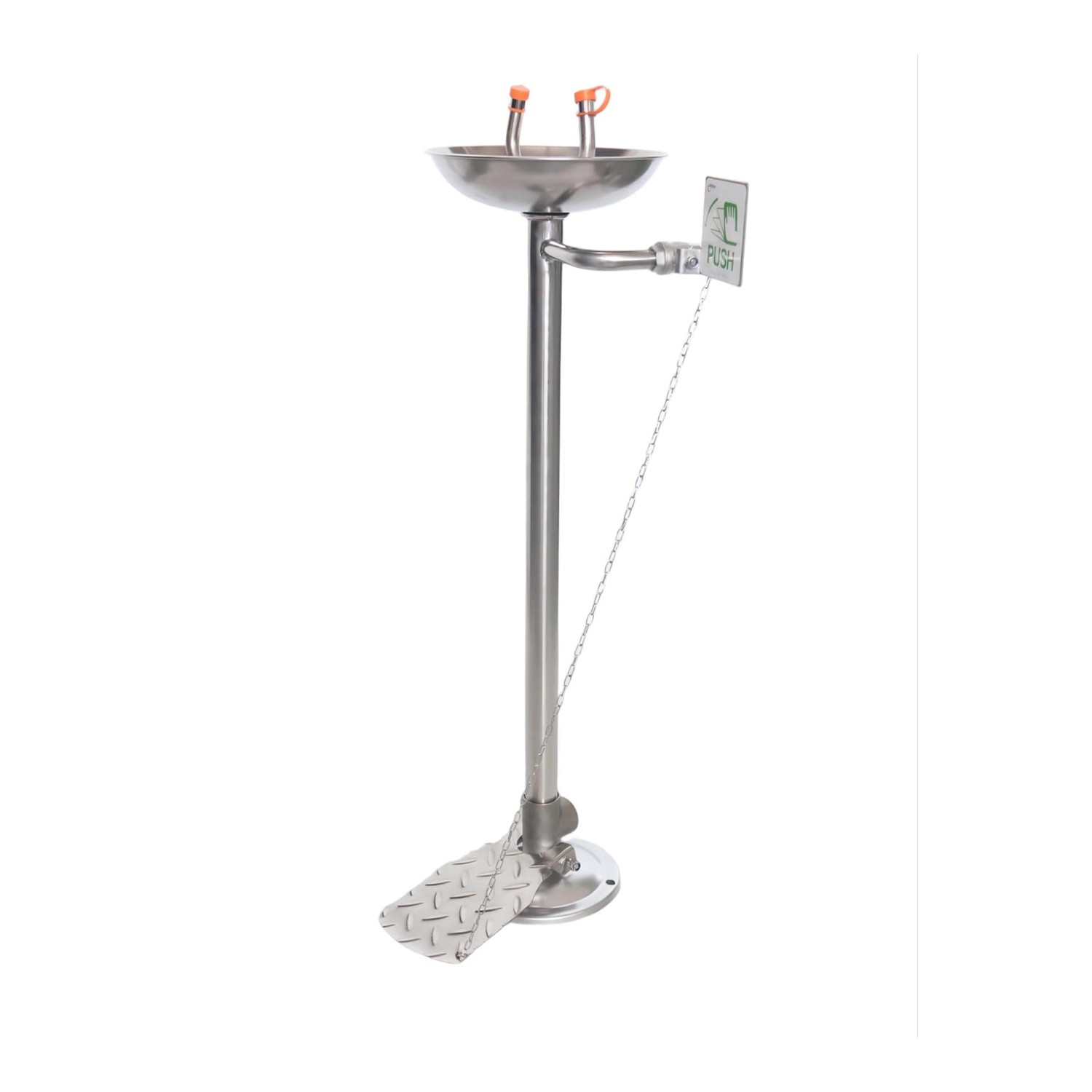

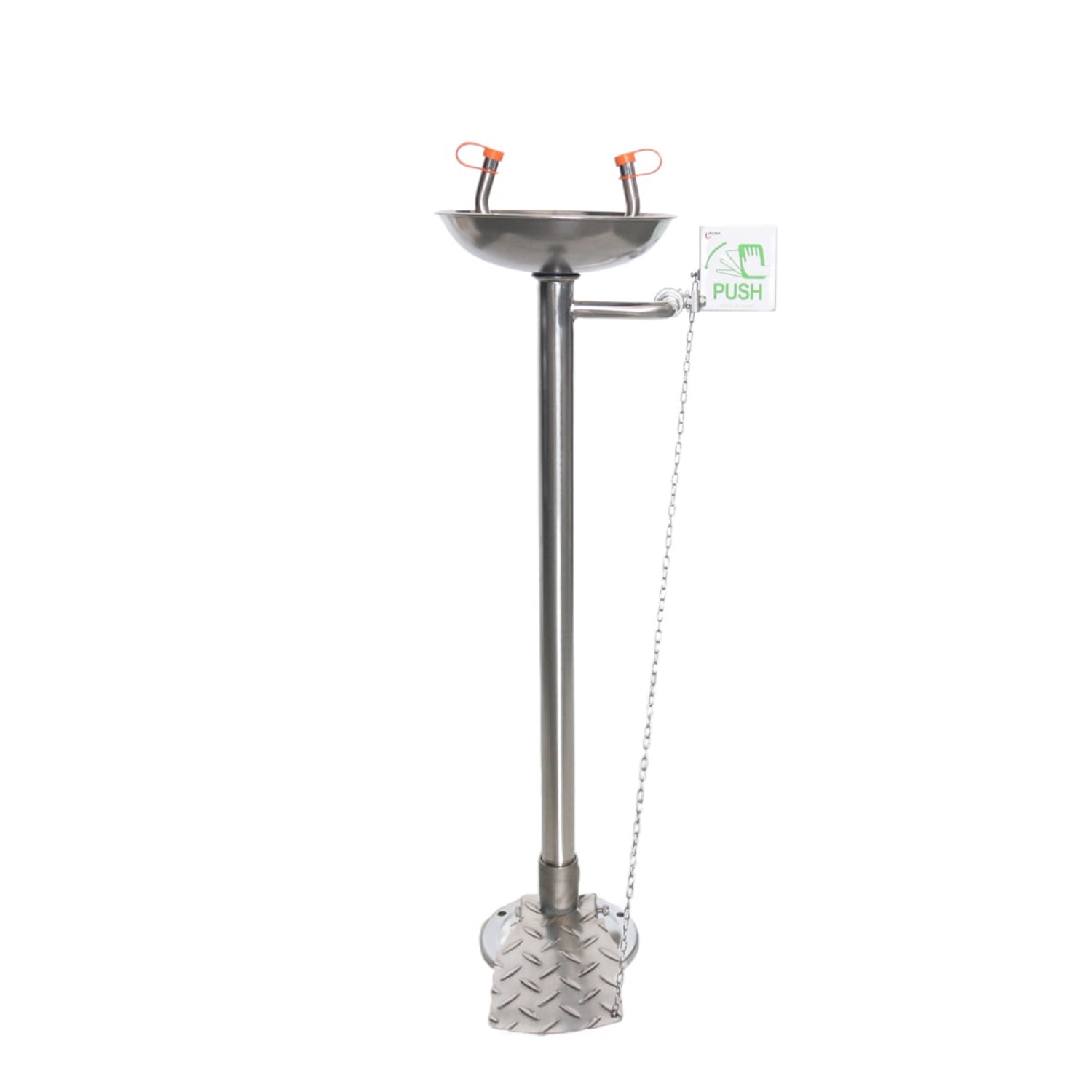

The Irona REF. 905 Vertical Eye Washer is a floor-mounted emergency safety device for pharmaceutical, chemical, petrochemical, and semiconductor environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Design Standard | ANSI Z358.1-2014 |
| Design Pressure | 1.0 MPa |
| Sealing Pressure | 0.6 MPa |
| Working Pressure | 0.2 – 0.4 MPa |
| Eye Wash Flow | 11.4 – 15 L/min |
| Intake Connection | Internal thread 1/2″ |
| Drain Connection | Internal thread 1-1/4″ |
| Water Supply | Drinking / clean water |
| Height | 934 mm |
| Basin Diameter | Ø305 mm |
Key Features
| Feature | Detail |
|---|---|
| Steel Grade | 06Cr19Ni10 (superior to standard 304) |
| Minimum Wall Thickness | 2.5 mm |
| Surface Finish | Mirror-polished |
| Flow Adjustment | Yes, via elbow assembly regulator |
| Spool | Replaceable for easy maintenance |
| Activation | Hand push plate or foot pedal |
| Auto-drain | Seepage hole empties accumulated water |
Maintenance & Testing
| Task | Frequency |
|---|---|
| Full functional test | At least once per week |
| Filter screen cleaning | Regularly / as needed |
| Minimum flush duration (emergency) | 15 minutes continuous |
