Neofeu-Fall Arrestor 12 M Model (NEO120EVO)

Description

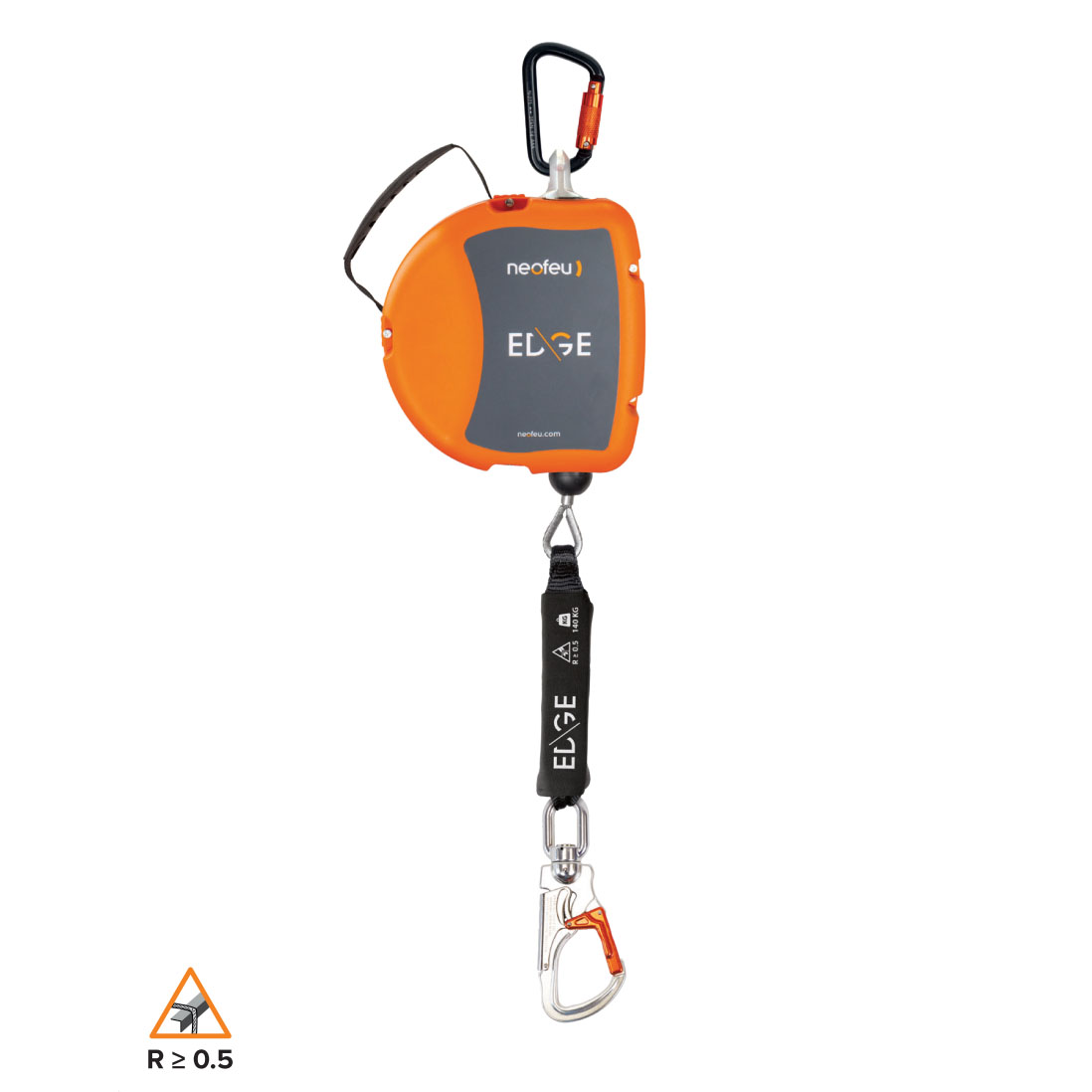

The NEO EDGE EVO is a fall arrester fitted with a 12 m retractable steel wire rope. User-friendly, it is equipped with a textile carrying
handle to facilitate its transport. It is recommended for both vertical and horizontal use for any user up to 140 kg. The shock absorber on the cable termination is protected by a polyester cover Works on heights with vertical fall hazards. Works in horizontally with fall hazard over a sharp edge ( R ≥ 0.5 mm).

Technical details

Vertical and horizontal use
• Maxi user weight 140 kg
• Lanyard in galvanized steel cable, 12 m Ø 4,8 mm
• Composite housing PA Polyamid + fiber glass
• Static resistance >12 kN
• Arrest force < 600 daN
• Minimum clearance when use in vertical : 2,6 m
• Minimum clearance when use in horizontal : 5,1 m
• Swivel anchor hook on top fitted with automatic twist lock
connector in aluminum, opening 22 mm
• Automatic swivel connector on cable with fall indicator
opening 28 mm in anodized aluminum
• Carry handle in textile and elastomer (not intended for
anchorage)
• Temperature of use : -30°C to +50°C
• Weight : 5,4 kg
