Neofeu-Safety harness Model (NUS 130)+Neofeu shock Absorber Model (NHEYA10MC)

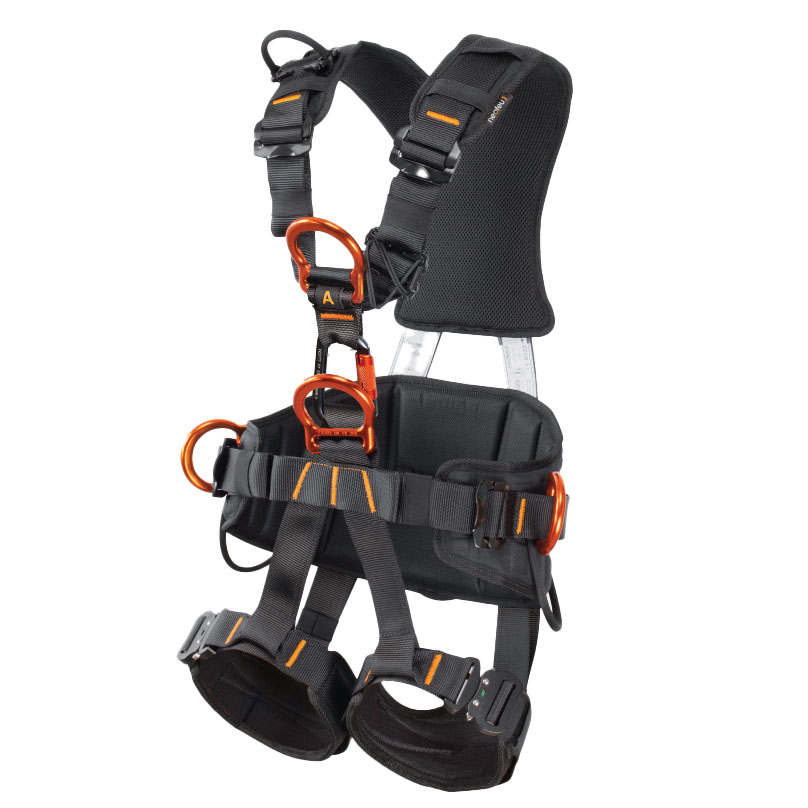

FULL BODY AND RESCUE HARNESS WITH INTEGRATED BELT

ALT’O is a versatile high comfort with a modern design.
Its resistant light alloy components makes it a safe and lightweight.
Its design allows fast and easy adjustment and its ergonomy is adapted to any working conditions.
The shoulder straps are widely spaced to limit neck shafing.

TECHNICAL SPECIFICATIONS

Water repellent webbing in polyester 44 mm (R ≥ 25 kN)
• Adjustment of shoulder straps, belt and leg straps height through quick buckles
• Back, front, suspension and work positioning D ring in anodised forged aluminium
• Large legs with breathable 3D fabric and automatic alu buckle
• Large positioning belt with breathable 3D fabric, adjustable on height with 3 large textile strings for tool holding and
2 plastic D ring
• Back pad with breathable 3D fabric to facilitate the donning of the harness and increase the comfort of the user
• Static resistance ≥ 15kN
• Weight : 2,2 kg
Removable accessories included:
• Removable ascender adjuster (Ref. : NUS131A).
• Universal lanyard holder (Ref. : NPORTL).
Available accessories:
• ALT’O removable seat (Ref. : NUS132).
• Ventral ascender (Ref. : NBLOCK).

for Shock absorber

Description

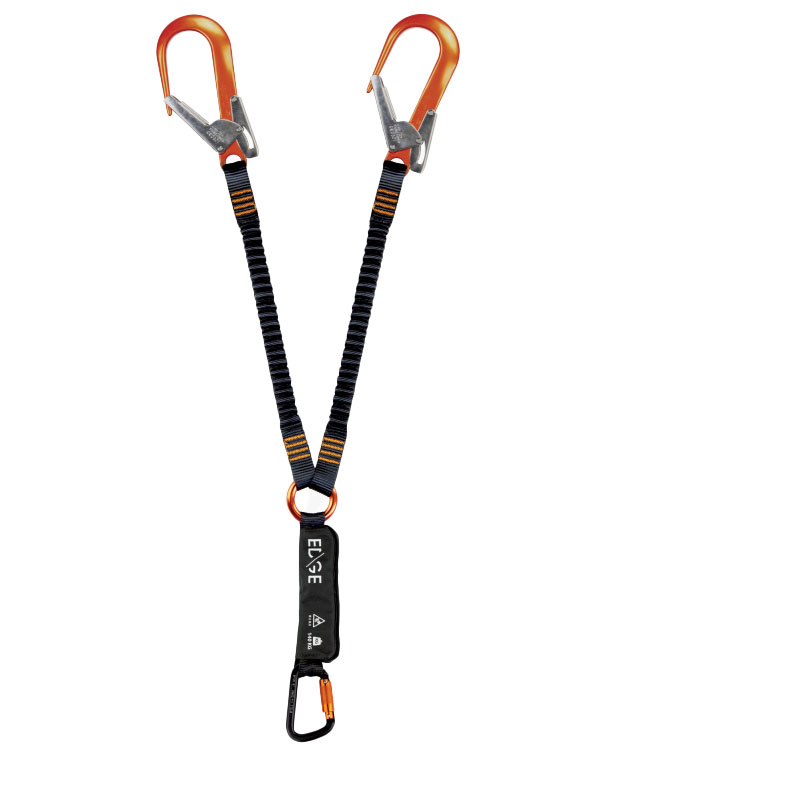

Shock aborber with integrated single or double elastic webbing lanyard (Y model). Extended length 1m without connector.
Compatible in a horizontal use for a maximum load up to 140kg (user + equipment).
A removable connector on energy absorber side and a removable or irremovable connector on the lanyard side. The shock absorber
is is protected with a polyester pouch.

Technical details

• Verticale and horizontale use up to 140 kg
• Energy absorber with a polyamide and polyester tearing strap of
31 mm breadth wrapped with a protective pouch
• Single or double (Y) elastic webbing in polyester wide 30mm
• Anodized aluminum ring
• Arrest force < 600 daN
• Static resistance ≥ 15 kN
• Available length without connector : 1m (extended)
• Weight : 260g (NHEA10) / 415g (NHEYA10
